AirMMax AMLT+ Roots Blower

Inquiry Now
Add to Card

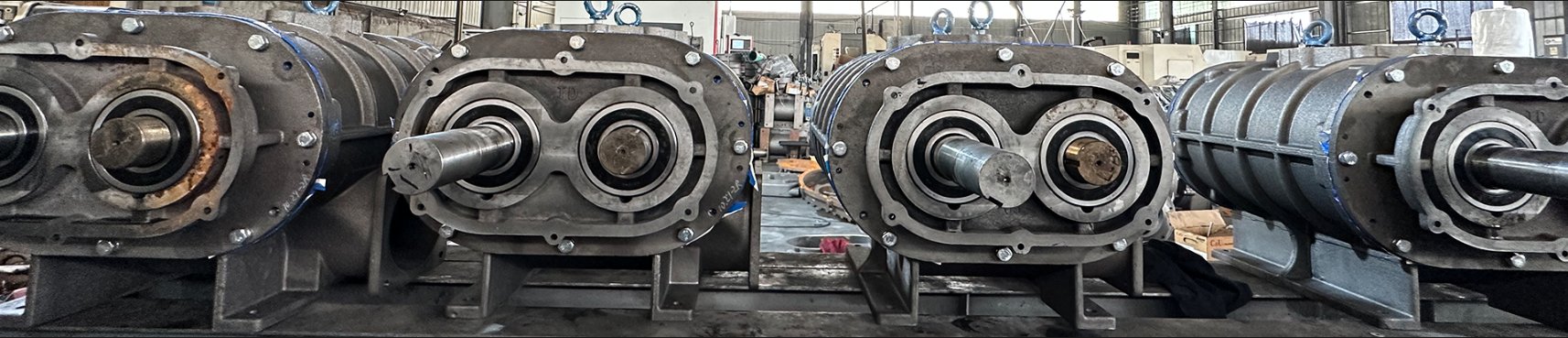

AirMMax AMLT+ roots blower is same design as Taiwan LongTech three lobe roots blower.

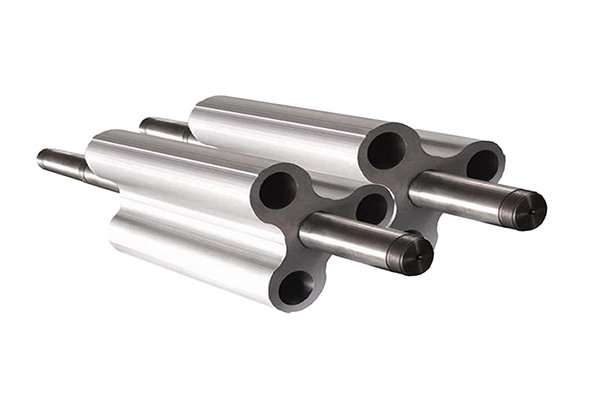

Roots Blower Work Principal

Roots blower is a positive displacement, constant volume machine which operates against varying pressure. The two impellers which are mounted on parallel shafts, rotate in opposite direction and with every movement of the impeller across the blower inlet, a definite volume of air is trapped and carried across the casing to the blower outlet where this air is discharged.

Roots blower supply clean air through pipe to DISC diffuser and aerotube, clean air pass through DISC diffuser wall and aerotube wall and transform into fine bubble, fine bubble rise slowly from the pond bottom to the surface which makes fine bubble have higher surface contact area and longer contact period with water.

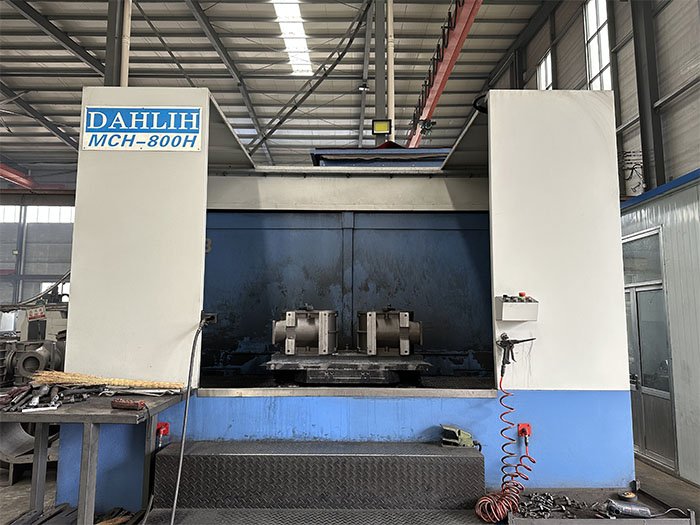

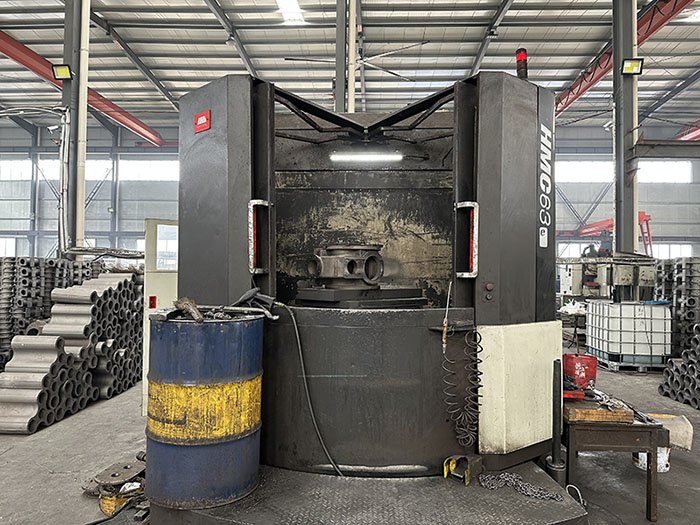

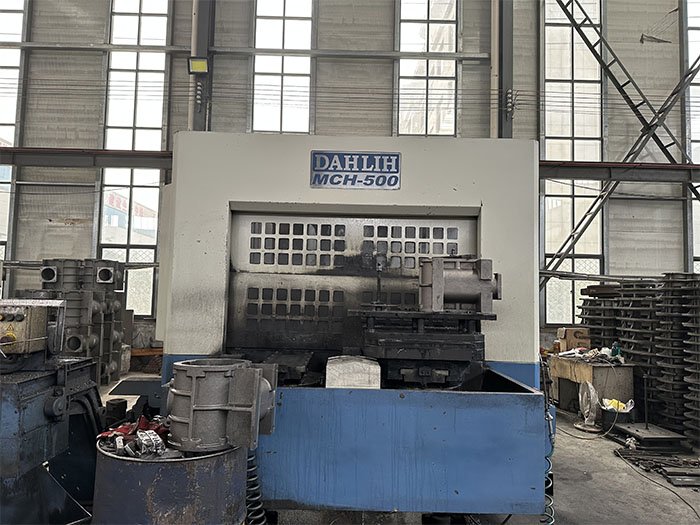

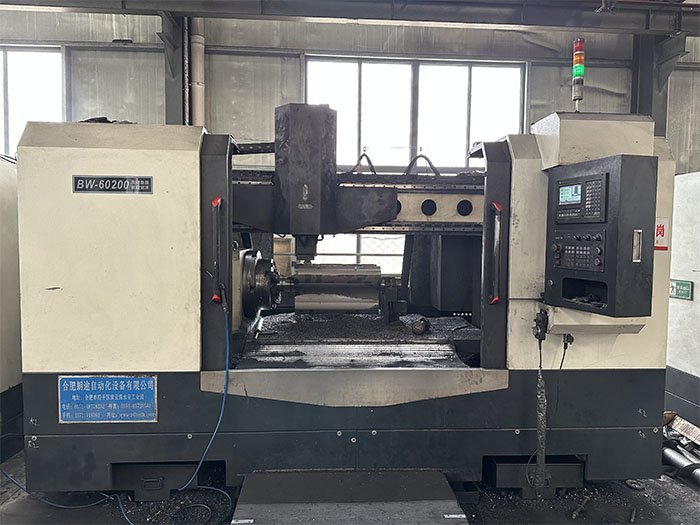

Roots Blower Machining

Roots Blower Application Field

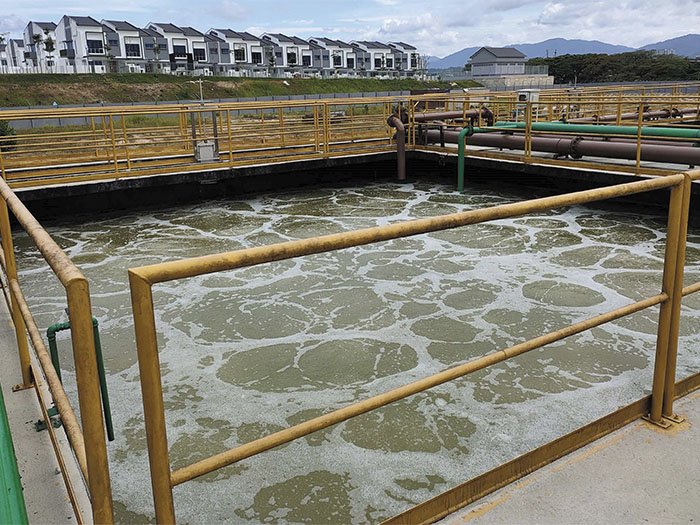

Water Treatment

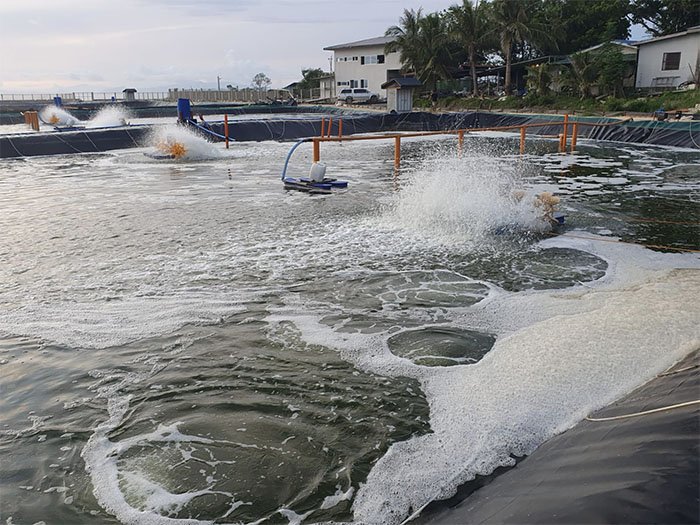

Shrimp Farming

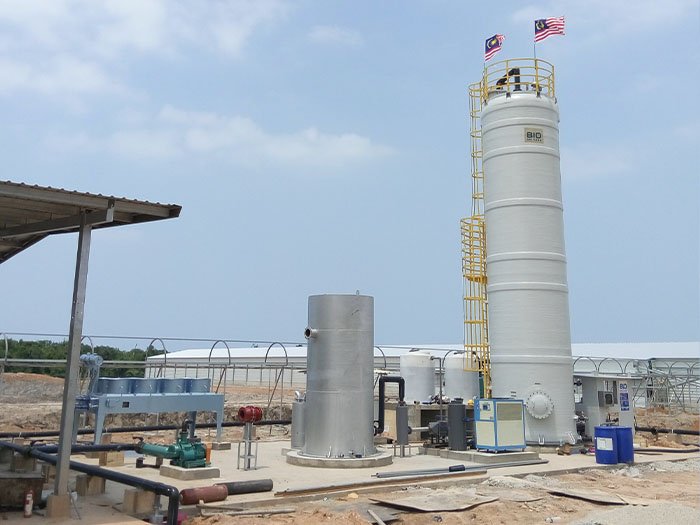

Biogas

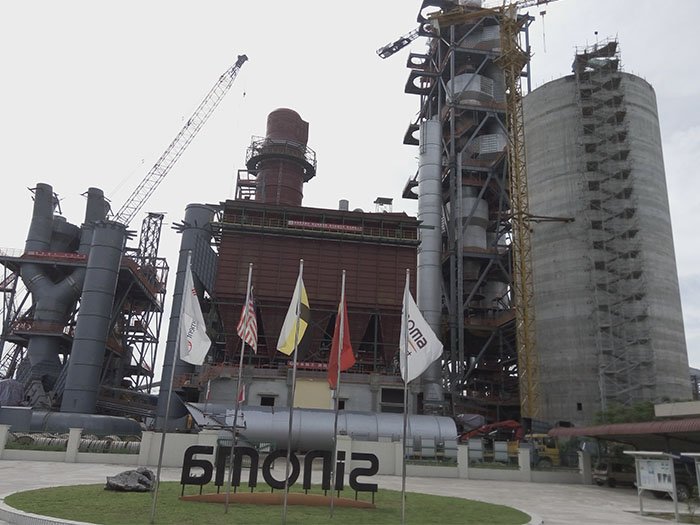

Cement Plant

AMLT+Three Lobe Roots Blower

Pressure Performance Table

Qs: Inlet air flow (m3/min)

La: Blower shaft power (Kw)

Model	RPM	Pressure
		1000mmAq		2000mmAq		3000mmAq		4000mmAq		5000mmAq		6000mmAq		7000mmAq		8000mmAq
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
AMLT + 040	1650	0.60	0.19	0.57	0.37	0.54	0.53	0.50	0.67	0.49	0.81	0.48	0.94
	1800	0.68	0.21	0.64	0.40	0.61	0.57	0.59	0.74	0.57	0.88	0.55	1.02
	1950	0.75	0.23	0.71	0.43	0.69	0.62	0.66	0.80	0.64	0.96	0.62	1.11
	2100	0.83	0.24	0.79	0.47	0.76	0.67	0.74	0.86	0.71	1.03	0.70	1.19
	2250	0.90	0.26	0.86	0.50	0.84	0.72	0.81	0.92	0.79	1.11	0.77	1.28
	2400	0.97	0.28	0.94	0.53	0.91	0.77	0.88	0.98	0.86	1.18	0.85	1.36
	2550	1.05	0.30	1.01	0.57	0.98	0.81	0.96	1.04	0.94	1.25	0.92	1.45
AMLT+050	850	0.99	0.41	0.79	0.80	0.64	1.16	0.50	1.51	0.38	1.84	0.29	2.15	0.21	2.45	0.15	2.74
	1000	1.31	0.48	1.11	0.94	0.96	1.37	0.82	1.77	0.70	2.16	0.61	2.53	0.53	2.88	0.47	3.22
	1150	1.63	0.56	1.44	1.08	1.28	1.57	1.15	2.04	1.02	2.49	0.93	2.91	0.86	3.32	0.79	3.71
	1300	1.95	0.63	1.76	1.22	1.61	1.78	1.47	2.32	1.34	2.81	1.25	3.29	1.18	3.75	1.12	4.19
	1450	2.27	0.70	2.08	1.36	1.93	1.98	1.79	2.57	1.67	3.13	1.58	3.67	1.50	4.18	1.44	4.67
	1600	2.60	0.77	2.40	1.50	2.25	2.19	2.11	2.84	1.99	3.46	1.90	4.05	1.82	4.61	1.76	5.16
	1750	2.92	0.85	2.72	1.64	2.57	2.39	2.43	3.11	2.31	3.78	2.22	4.43	2.14	5.05	2.08	5.64
AMLT+065	850	2.07	0.62	1.89	1.21	1.71	1.76	1.55	2.29	1.41	2.78	1.29	3.26	1.19	3.71	1.09	4.15
	1000	2.58	0.73	2.41	1.42	2.22	2.07	2.07	2.69	1.93	3.27	1.81	3.83	1.71	4.37	1.60	4.88
	1150	3.10	0.84	2.93	1.64	2.74	2.38	2.58	3.09	2.45	3.77	2.33	4.41	2.22	5.03	2.12	5.62
	1300	3.62	0.95	3.45	1.85	3.26	2.69	3.10	3.50	2.96	4.26	2.84	4.99	2.74	5.68	2.64	6.35
	1450	4.13	1.06	3.96	2.06	3.77	3.01	3.62	3.90	3.48	4.75	3.36	5.56	3.26	6.34	3.15	7.08
	1600	4.65	1.17	4.48	2.28	4.29	3.32	4.13	4.30	4.00	5.24	3.88	6.14	3.77	6.99	3.67	7.81
	1750	5.17	1.28	5.00	2.49	4.81	3.63	4.65	4.71	4.51	5.73	4.39	6.71	4.29	7.65	4.19	8.55
AMLT+080	850	3.24	1.12	2.87	2.14	2.54	3.08	2.23	3.94	1.95	4.73	1.71	5.47	1.48	6.15	1.28	6.79
	1000	4.14	1.32	3.77	2.52	3.44	3.62	3.13	4.63	2.85	5.57	2.60	6.44	2.38	7.24	2.18	7.99
	1150	5.04	1.51	4.67	2.90	4.34	4.16	4.03	5.33	3.75	6.40	3.50	7.40	3.28	8.33	3.08	9.19
	1300	5.94	1.71	5.57	3.27	5.24	4.71	4.93	6.02	4.65	7.24	4.40	8.37	4.18	9.41	3.98	10.39
	1450	6.84	1.91	6.47	3.65	6.14	5.25	5.83	6.72	5.55	8.07	5.30	9.33	5.08	10.50	4.88	11.58
	1600	7.74	2.11	7.37	4.03	7.04	5.79	6.73	7.41	6.45	8.91	6.20	10.30	5.98	11.58	5.78	12.78
	1750	8.64	2.30	8.27	4.41	7.94	6.33	7.63	8.11	7.35	9.75	7.10	11.26	6.88	12.67	6.68	13.98
AMLT+100	850	5.80	1.57	5.19	3.00	4.65	4.31	4.16	5.51	3.74	6.63	3.36	7.66	3.03	8.62	2.74	9.51
	1000	7.06	1.84	6.45	3.53	5.91	5.07	5.42	6.49	5.00	7.80	4.62	9.01	4.29	10.14	4.00	11.19
	1150	8.32	2.12	7.71	4.05	7.17	5.83	6.68	7.46	6.26	8.97	5.88	10.36	5.55	11.66	5.26	12.86
	1300	9.58	2.40	8.97	4.58	8.43	6.59	7.94	8.43	7.52	10.14	7.14	11.71	6.81	13.18	6.52	14.54
	1450	10.84	2.67	10.23	5.11	9.69	7.35	9.20	9.41	8.78	11.31	8.40	13.06	8.07	14.70	7.78	16.22
	1600	12.10	2.95	11.49	5.64	10.95	8.11	10.45	10.38	10.04	12.47	9.66	14.42	9.33	16.22	9.04	17.90
	1750	13.36	3.23	12.75	6.17	12.21	8.87	11.72	11.35	11.30	13.64	10.92	15.77	10.59	17.74	10.30	19.57

Model	RPM	Pressure
		1000mmAq		2000mmAq		3000mmAq		4000mmAq		5000mmAq		6000mmAq		7000mmAq		8000mmAq
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
AMLT+125S	750	8.13	2.05	7.43	3.91	6.80	5.62	6.22	7.20	5.72	8.66	5.25	10.01	4.83	11.26	4.46	12.42
	900	10.02	2.46	9.32	4.70	8.69	6.75	8.11	8.64	7.61	10.39	7.14	12.01	6.72	13.51	6.35	14.91
	1050	11.91	2.86	11.21	5.48	10.58	7.87	10.00	10.08	9.51	12.12	9.03	14.01	8.61	15.76	8.24	17.39
	1200	13.80	3.27	13.10	6.26	12.47	9.00	11.89	11.52	11.39	13.85	10.92	16.01	10.50	18.01	10.13	19.88
	1350	15.69	3.68	14.99	7.04	14.36	10.12	13.78	12.96	13.28	15.58	12.81	18.01	12.39	20.27	12.02	22.36
	1500	17.58	4.09	16.88	7.83	16.25	11.25	15.67	14.40	15.17	17.31	14.70	20.01	14.28	22.52	13.91	24.85
	1650	19.47	4.50	18.77	8.61	18.14	12.37	17.56	15.84	17.06	19.04	16.59	22.01	16.17	24.77	15.80	27.33
AMLT+125	750	10.29	2.59	9.42	4.96	8.62	7.13	7.88	9.12	7.25	10.97	6.66	12.67	6.11	14.26	5.65	15.74
	900	12.69	3.11	11.81	5.95	11.01	8.55	10.28	10.95	9.64	13.16	9.05	15.21	8.51	17.11	8.04	18.89
	1050	15.08	3.63	14.20	6.94	13.41	9.98	12.67	12.77	12.03	15.35	11.44	17.74	10.90	19.97	10.44	22.04
	1200	17.48	4.16	16.60	7.93	15.80	11.40	15.07	14.59	14.43	17.55	13.84	20.28	13.29	22.82	12.83	25.18
	1350	19.87	4.66	18.99	8.92	18.19	12.83	17.46	16.42	16.82	19.74	16.23	22.81	15.69	25.67	15.23	28.33
	1500	22.26	5.18	21.39	9.91	20.59	14.25	19.85	18.24	19.22	21.93	18.63	25.35	18.08	28.52	17.65	31.48
	1650	24.66	5.70	23.78	10.90	22.98	15.68	22.25	20.07	21.61	24.13	21.02	27.88	20.48	31.38	20.01	34.63
AMLT+150	750	13.32	3.34	12.62	6.39	11.98	9.19	11.40	11.76	10.87	14.14	10.39	16.34	10.00	18.39	9.61	20.30
	900	16.40	4.01	15.70	7.67	15.06	11.03	14.49	14.11	13.95	16.97	13.48	19.61	13.09	22.07	12.70	24.36
	1050	19.49	4.68	18.79	8.95	18.15	12.86	17.58	16.47	17.04	19.80	16.57	22.88	16.18	25.75	15.78	28.41
	1200	22.58	5.35	21.88	10.23	21.24	14.70	20.66	18.82	20.13	22.62	19.65	26.15	19.26	29.42	18.87	32.47
	1350	25.66	6.02	24.96	11.50	24.33	16.54	23.75	21.17	23.21	25.45	22.74	29.42	22.35	33.10	21.96	36.53
	1500	28.75	6.68	28.05	12.79	27.41	18.38	26.84	23.52	26.30	28.28	25.83	32.69	25.44	36.78	25.05	40.59
	1650	31.84	7.35	31.14	14.06	30.50	20.21	29.92	25.88	29.39	31.11	28.91	35.95	28.52	40.46	28.13	44.65
AMLT+175	600	17.01	4.84	15.95	9.27	15.04	13.32	14.21	17.06	13.53	20.51	12.93	23.71	12.40	26.68	11.98	29.45
	750	22.68	6.05	21.62	11.58	20.71	16.65	19.88	21.32	19.20	25.64	18.60	29.64	18.07	33.36	17.65	36.82
	900	28.35	7.27	27.29	13.90	26.38	19.98	25.55	25.59	24.87	30.76	24.27	35.57	23.74	40.03	23.32	44.18
	1050	34.02	8.48	32.96	16.22	32.05	23.32	31.22	29.85	30.54	35.89	29.94	41.49	29.41	46.70	28.99	51.55
	1200	39.69	9.69	38.63	18.53	37.72	26.65	36.89	34.12	36.21	41.02	35.61	47.42	35.08	53.37	34.66	58.91
	1350	45.36	10.90	44.30	20.85	43.39	29.98	42.56	38.38	41.88	46.15	41.28	53.35	40.75	60.04	40.33	66.28
	1500	51.03	12.11	49.97	23.17	49.06	33.31	48.23	42.65	47.55	51.28	46.95	59.29	46.42	66.71	46.00	73.64
AMLT+200	600	26.33	7.40	24.91	14.16	23.65	20.35	22.50	26.06	21.45	31.35	20.52	36.23	19.69	40.77	18.98	45.00
	750	34.56	9.25	33.14	17.70	31.87	25.44	30.72	32.58	29.68	39.17	28.75	45.28	27.92	50.96	27.21	56.25
	900	42.80	11.10	41.36	21.24	40.11	30.53	38.95	39.09	37.91	47.01	36.97	54.34	36.16	61.15	35.44	67.50
	1050	51.02	12.95	49.60	24.77	48.34	35.62	47.19	45.61	46.14	54.84	45.21	63.39	44.38	71.34	43.67	78.75
	1200	59.25	14.80	57.83	28.31	56.56	40.71	55.41	52.12	54.37	62.67	53.44	72.45	52.61	81.54	51.90	90.00
	1350	67.48	16.65	66.05	31.85	64.79	45.80	63.64	58.64	62.60	70.51	61.66	81.51	60.84	91.73	60.13	101.20
	1500	75.72	18.50	74.28	35.39	73.03	50.89	71.87	65.16	70.83	78.34	69.89	90.56	69.07	101.90	68.36	112.50

Model	RPM	Pressure
		1000mmAq		2000mmAq		3000mmAq		4000mmAq		5000mmAq		6000mmAq		7000mmAq		8000mmAq
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
AMLT+250	600	27.72	7.40	26.22	14.16	24.89	20.35	23.68	26.06	22.58	31.35	21.60	36.23	20.73	40.77	19.98	45.00
	750	36.38	9.25	34.88	17.70	33.55	25.44	32.34	32.58	31.24	39.17	30.26	45.28	29.39	50.96	28.64	56.25
	900	45.05	11.10	43.54	21.24	42.22	30.53	41.00	39.09	39.91	47.01	38.92	54.34	38.06	61.15	37.31	67.50
	1050	53.71	12.95	52.21	24.77	50.88	35.62	49.67	45.61	48.57	54.84	47.59	63.39	46.72	71.34	45.97	78.75
	1200	62.37	14.80	60.87	28.31	59.54	40.71	58.33	52.12	57.23	62.67	56.25	72.45	55.38	81.54	54.63	90.00
	1350	71.03	16.65	69.53	31.85	68.20	45.80	66.99	58.64	65.89	70.51	64.91	81.51	64.04	91.73	63.29	101.20
	1500	79.70	18.50	78.19	35.39	76.87	50.89	75.65	65.16	74.56	78.34	73.57	90.56	72.71	101.90	71.96	112.50
AMLT+250A	600	39.45	10.36	37.54	18.02	35.93	25.92	34.56	33.71	33.34	41.48	32.19	49.20	31.19	56.80	30.35	64.30
	750	50.92	12.95	49.00	22.52	47.40	32.40	46.02	42.14	44.80	51.85	43.65	61.50	42.66	71.00	41.82	80.40
	900	62.38	15.53	60.47	27.03	58.87	38.88	57.49	50.57	56.27	62.22	55.12	73.80	54.13	85.20	53.29	96.50
	1050	73.85	18.12	71.94	31.53	70.33	45.36	68.96	58.99	67.73	72.59	66.59	86.10	65.59	99.40	64.75	112.60
	1200	85.32	20.71	83.41	36.04	81.80	51.84	80.43	67.42	79.20	82.96	78.06	98.39	77.06	113.60	76.22	128.70
	1350	96.79	23.30	94.87	40.54	93.28	58.32	91.89	75.85	90.67	93.33	89.52	110.70	88.53	127.80	87.69	144.70
	1500	108.30	25.89	106.30	45.05	104.70	64.80	103.40	84.28	102.10	103.70	101.00	123.00	100.00	142.00	99.16	160.80
AMLT+300	600	58.94	14.44	55.49	25.88	53.71	37.23	52.04	47.70	50.48	58.83	49.26	68.88	47.59	79.49	46.70	88.83
	750	75.62	18.06	72.17	32.35	70.39	46.54	68.72	59.63	67.16	73.53	65.94	86.10	64.27	99.36	63.38	111.00
	900	92.30	21.67	88.85	38.82	87.07	55.85	85.40	71.55	83.84	88.24	82.62	103.30	80.95	119.20	80.06	133.30
	1050	109.00	25.28	105.50	45.29	103.70	65.16	102.10	83.48	100.50	102.90	99.30	120.50	97.63	139.10	96.74	155.50
	1200	125.70	28.89	122.20	51.76	120.40	74.46	118.80	95.41	117.20	117.70	116.00	137.80	114.30	159.00	113.40	177.70
	1350	142.30	32.50	138.90	58.23	137.10	83.77	135.40	107.30	133.90	132.40	132.70	155.00	131.00	178.80	130.10	199.90
	1500	159.00	36.11	155.60	64.70	153.80	93.08	152.10	119.30	150.60	147.10	149.30	172.20	147.70	198.70	146.80	222.10
AMLT+300A	600	88.30	21.07	85.00	37.30	82.30	53.64	80.00	71.40	78.10	87.00	76.10	103.10	74.50	119.00	72.50	136.50
	700	104.70	24.58	101.40	43.52	98.70	62.58	96.40	83.30	94.50	101.50	92.50	120.30	90.90	138.90	88.90	159.30
	800	121.10	28.10	117.80	49.74	115.10	71.52	112.80	95.20	110.90	116.00	108.90	137.50	107.30	158.70	105.30	182.10
	900	137.50	31.61	134.20	55.95	131.50	80.46	129.20	107.10	127.30	130.50	125.30	154.70	123.70	178.60	121.70	204.80
	1000	153.90	35.12	150.60	62.17	147.90	89.39	145.60	119.00	143.70	145.00	141.70	171.90	140.10	198.40	138.10	227.60
	1100	170.30	38.63	167.00	68.39	164.30	98.33	162.00	130.90	160.10	159.50	158.10	189.10	156.50	218.20	154.50	250.30
	1200	186.70	42.15	183.40	74.60	180.70	107.30	178.40	142.80	176.50	174.00	174.50	206.30	172.90	238.10	170.90	273.10
AMLT+350	600	138.30	32.31	133.10	58.00	129.00	83.48	125.20	109.60	121.90	134.10	119.10	160.30	116.30	182.70	113.50	212.30
	700	163.80	37.70	158.60	67.67	154.50	97.39	150.70	127.90	147.40	156.40	144.60	187.10	141.80	213.20	139.00	247.70
	800	189.30	43.08	184.10	77.33	180.00	111.30	176.20	146.20	172.90	178.80	170.10	213.80	167.30	243.20	164.50	283.10
	900	214.80	48.47	209.60	87.00	205.50	125.20	201.70	164.50	198.40	201.10	195.60	240.50	192.80	274.10	190.00	318.50
	1000	240.30	53.85	235.10	96.67	231.00	139.10	227.20	182.70	223.90	223.40	221.10	267.20	218.30	304.60	215.50	353.90
	1100	265.80	59.24	260.60	106.30	256.50	153.00	252.70	201.00	249.40	245.80	246.60	294.00	243.80	335.00	241.00	389.20
	1200	291.30	64.62	286.10	116.00	282.00	167.00	278.20	219.30	274.90	268.10	272.10	320.70	269.30	365.50	266.50	424.60
AMLT+400	600	236.30	53.28	230.30	95.65	225.50	137.70	221.30	180.80	217.60	221.10	214.10	264.40	211.30	301.40	208.80	350.10
	650	257.50	57.73	251.40	103.60	246.50	149.10	242.30	195.90	238.60	239.50	235.20	286.50	232.30	326.50	229.80	379.30
	700	278.40	62.17	272.40	111.60	267.50	160.60	263.30	210.90	259.60	257.90	256.20	308.50	253.40	351.60	250.80	408.50
	750	299.40	66.61	293.40	119.60	288.60	172.10	284.40	226.00	280.70	276.40	277.20	330.50	274.40	376.70	271.90	437.70
	800	320.40	71.05	314.40	127.50	309.60	183.60	305.40	241.10	301.70	294.80	298.20	352.60	295.40	401.80	292.90	466.80
	850	341.50	75.49	335.50	135.50	330.60	195.00	326.40	256.10	322.70	313.20	319.30	374.60	316.40	426.90	313.90	496.00
	900	362.50	79.93	356.50	143.50	351.60	206.50	347.40	271.20	343.70	331.60	340.30	396.70	337.50	452.00	335.00	525.50
